Дом Продукты Экструзионные машины для производства напольных покрытий SPC/LVT/WPC

Линия экструзии листов для напольного покрытия SPC/ПВХ

Линия экструзии листов для напольного покрытия SPC/ПВХ

Экструдер для напольных покрытий SPC (Stone Plastic Composite) является основным оборудованием в линиях по производству жестких виниловых напольных покрытий. Это высокомоментный конический двухшнековый экструдер, специально разработанный для равномерного смешивания, пластификации и непрерывной экструзии композитных материалов для напольных покрытий.





  • Номер товара :

    SWDB5
  • Использование :

    Plastic Extrusion
  • Цвет :

    Customized Color
  • Винтового типа :

    Twin Conical Screw
  • Сырье :

    PVC Resins+CaCo3
ЗАПРОС СЕЙЧАС

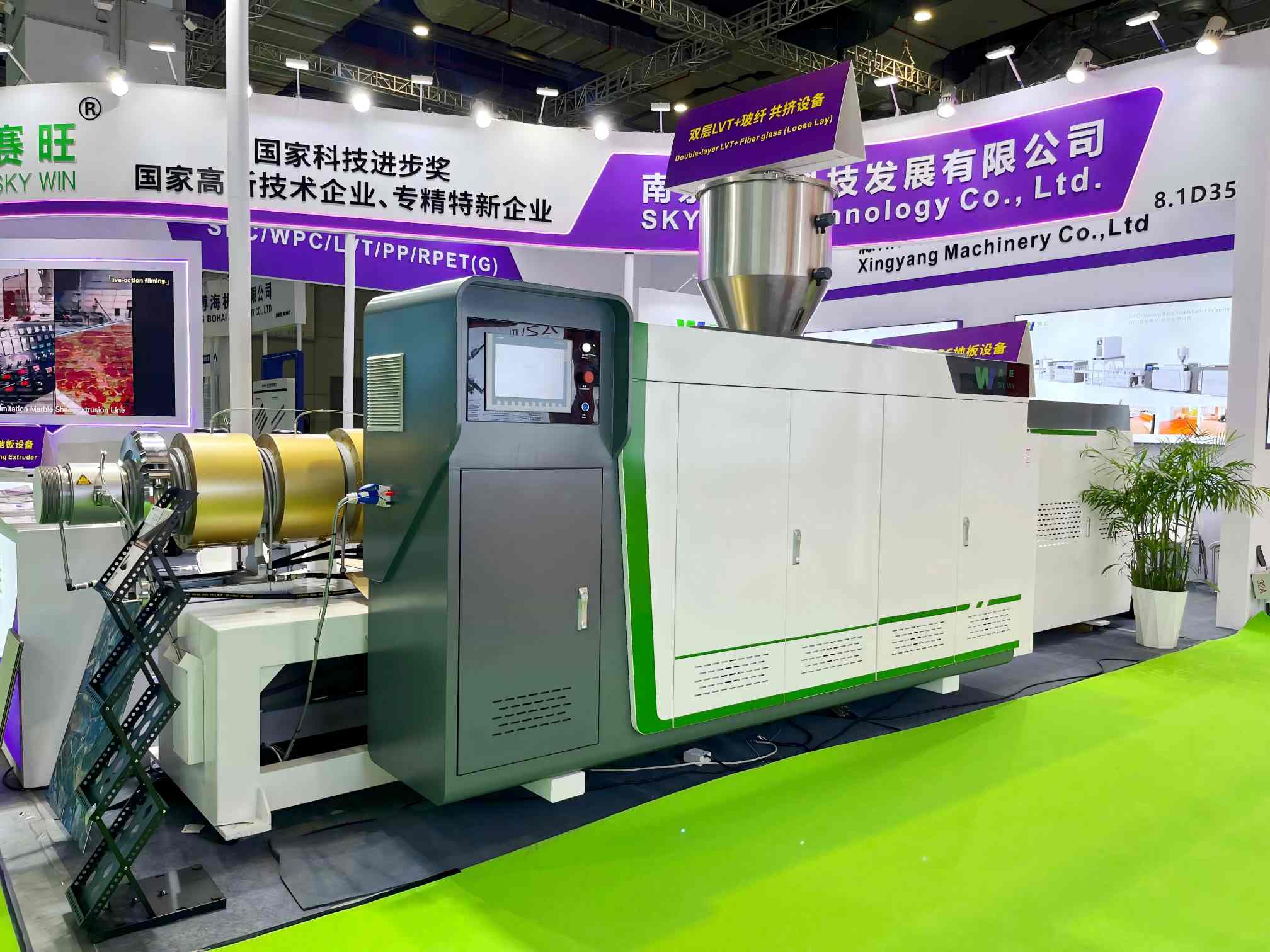

PVC Flooring Conical Twin Screw Extruder

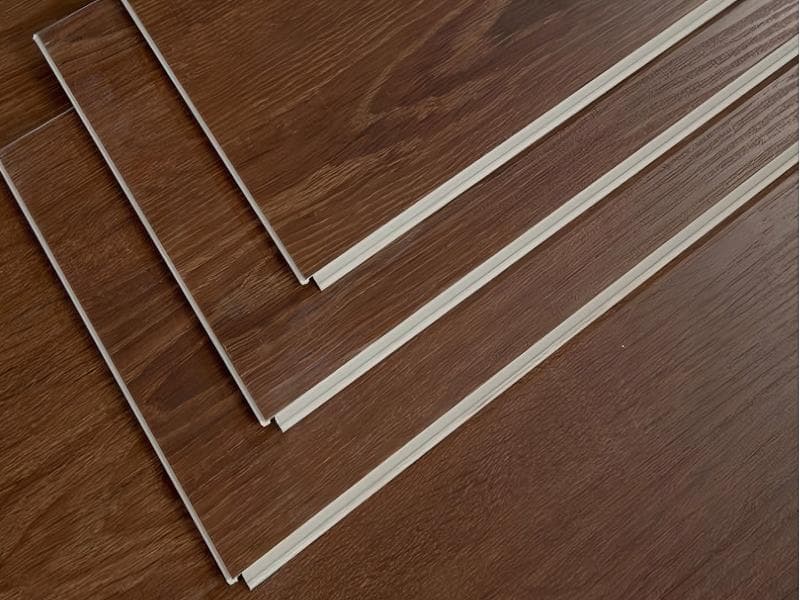

SPC flooring's primary raw materials are calcium carbonate (limestone), polyvinyl chloride (PVC) resin, and stabilizers. It offers exceptional stability, virtually no shrinkage, expansion, or deformation; it also boasts exceptional durability and impact resistance, and is absolutely waterproof.

Advantages:

SWDB5 Series PVC Flooring Extrusion Machine Specifications Overview

Machine Type

Machine Type

Extruder

Sheet Thickness(mm)

Sheet Width(mm)

Main Motor Power(kw)

Total Power(kw)

Output(kg/hr)

SWDB5-2

92/188

1.5-7

970-1220

90/110

270

600-800

SWDB5-3

110/220

1.5-7

970-1220

160/200

308/376

1100-1400

SWDB5-3-2

115/232

1.5-7

970-1220

200

400

1500-1800

SWDB5-3--3

125/243

1.5-7

970-1220

200

420

2000-2500

SWDB5-4

132/276

1.5-7

970-1220

280

500

2500-2900

SWDB5-5

150/300

1.5-7

970-1220

315

520

2900-3300

SWDB5-6

182/336

1.5-7

970-1220

450

650

3000-4000

Machine List

NO Name Qty
1 Extruder 1 unit
2 Five-roll laminator 1 unit
3 Laminating unit 1 set
4 Oil-heated roll system 1 set
5 Cooling support frame 1 unit
6 Cooling system 2 sets
7 Edge trimmer 1 unit
8 Haul-off unit 1 unit
9 High-speed sheet cutter 1 unit
10 Electrical control system 1 set
  • SPC Flooring Production Line
  • Luxury Vinyl Tile Extrusion Line
  • SPC/LVT Floor Manufacturing Machine
  • #
  • #



HONOR

Honors & Patents — Where Innovation Meets Recognition

At SKY WIN, innovation is not a slogan — it is a proven track record spanning more than two decades.

As a pioneer in WPC and SPC extrusion equipment since 2004, SKY WIN has earned a position of industry leadership that few can match. We are the only equipment manufacturer in the industry to receive China's National Science & Technology Progress Award (2012) — a distinction that speaks directly to the depth of our engineering excellence.

Our commitment to innovation is protected by more than 50 invention and utility model patents, covering breakthrough technologies such as our patented WPC one-step extrusion process. SKY WIN also served as a drafter of the China National Standard for WPC flooring, meaning the rules of the industry are quite literally written with our expertise.

Our credentials include:

· National High-Tech Enterprise (certified since 2012)

· Specialized & Innovative Enterprise (2023)

· National Science & Technology Progress Award winner (2012)

· 50+ invention and utility model patents in extrusion technology

· Drafter of the China National Standard on WPC flooring

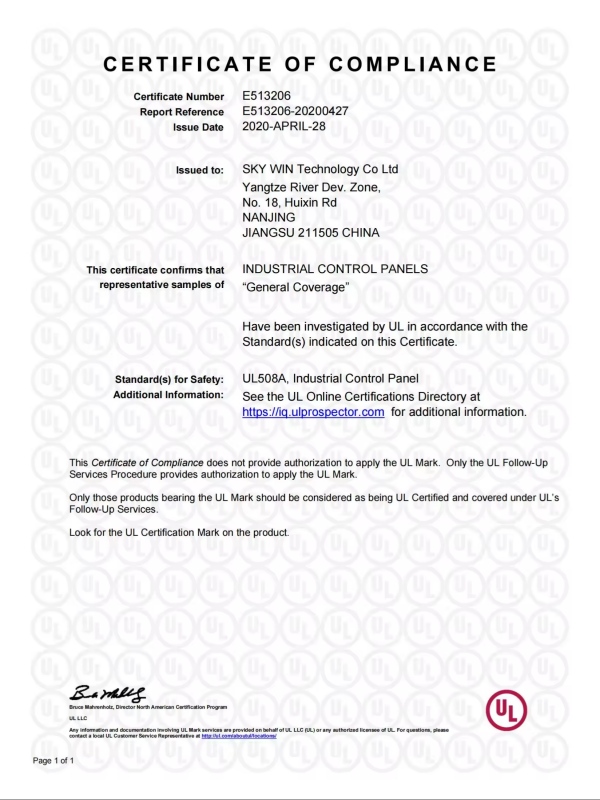

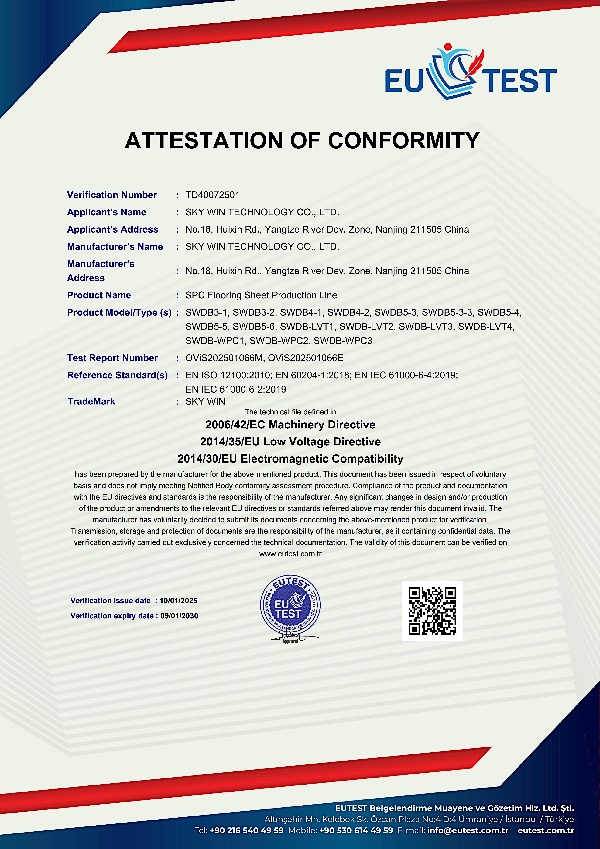

· Full international compliance: ISO 9001, CE (EU), UL (North America), and SABER (Middle East) certifications

Behind every honor stands a powerful innovation engine: 40+ dedicated R&D engineers, and long-term research partnerships with China's leading institutions — Northeast Forestry University, Nanjing Forestry University, and Beijing University of Chemical Technology.

  • #
    University Collaboration
  • #
     WPC Flooring Standard of P.R.C.
  • #
     National High-Tech Enterprise
  • #
    Specialized & Innovative Enterprise
  • #

  • #

  • #

  • #


FAQ

Q1: What materials can the PVC Flooring extrusion line process?

A1: The PVC Flooring extrusion line is designed to process PVC and related composite materials, which are commonly used in the production of SPC (Stone Plastic Composite) and LVT (Luxury Vinyl Tile) flooring sheets.

Q2: What are the advantages of using SPC/LVT flooring over traditional flooring materials?

A2: SPC/LVT flooring offers several advantages, including water resistance, durability, ease of installation, and a wide range of design options. It is also more environmentally friendly compared to some traditional flooring materials.

Q3: How does the extrusion line ensure the quality of the flooring sheets?

A3: The extrusion line is equipped with advanced control systems and quality monitoring devices that ensure consistent material mixing, precise extrusion, and uniform cooling, resulting in high-quality flooring sheets.

Q4: What is the typical production capacity of the PVC Flooring extrusion line?

A4: The production capacity can vary depending on the specific model and configuration of the extrusion line. However, our lines are designed to handle high-volume production while maintaining quality standards.

Q5: How long does it take to set up and start production with the extrusion line?

A5: Setup time can vary, but with our user-friendly design and comprehensive installation support, most customers are able to start production within a few weeks of receiving the equipment.

Q6: Are there any maintenance requirements for the extrusion line?

A6: Regular maintenance is essential for the longevity and optimal performance of the extrusion line. This includes routine checks of the screws, bearings, and cooling systems, as well as cleaning and lubrication as needed.

Q7: What kind of technical support is available for the extrusion line?

A7: We offer comprehensive technical support, including on-site installation assistance, operator training, and ongoing customer service for troubleshooting and technical inquiries.

Q8: Can the extrusion line be customized to meet specific production needs?

A8: Yes, we can customize the extrusion line to suit your specific production requirements, whether it's adjusting the width of the sheet, modifying the extrusion process, or integrating with existing production lines.
